What Is Zamak Die Casting and How Does It Create Precision Metal Parts?

1. What Is Zamak Die Casting?

Zamak die casting is a pressure casting process in which molten zinc alloy is injected into a precisely manufactured steel die at high speed and pressure. The metal rapidly fills the cavity, reproducing features such as ribs, bosses, holes, grooves, lettering, mounting points, and other details before solidifying.

The word Zamak refers to a family of zinc alloys containing zinc as the primary element together with aluminum, magnesium, and, depending on the grade, copper. Common commercial grades include Zamak 2, Zamak 3, Zamak 5, and Zamak 7. ASTM specifications identify these traditional Zamak grades within the broader zinc and zinc-aluminum alloy family. :contentReference[oaicite:0]{index=0}

Zamak is particularly attractive for components that require a combination of dimensional consistency, complex geometry, good surface appearance, and efficient high-volume production. Zinc die casting is also commonly performed using hot-chamber equipment because the melting characteristics of conventional Zamak alloys are well suited to this process. :contentReference[oaicite:1]{index=1}

2. How Do Zamak Alloys Differ?

Choosing the correct alloy is one of the earliest engineering decisions in a Zamak die casting project. The major Zamak grades have similar zinc-aluminum foundations, but differences in copper, magnesium, purity, and other controlled elements influence strength, hardness, ductility, fluidity, creep behavior, and finishing characteristics.

The Zinc Die Casting Association describes Alloy 3 as offering a strong balance of castability, dimensional stability, and finishing characteristics, while Alloy 5 provides increased strength and hardness with some reduction in ductility. Alloy 7 is modified for improved fluidity, ductility, and surface finish. :contentReference[oaicite:2]{index=2}

ASTM B240 provides standardized compositions for Zamak and zinc-aluminum alloy ingots used for remelting into castings. For production projects, buyers should confirm the applicable material specification and acceptance requirements with the manufacturer rather than relying only on an alloy name. :contentReference[oaicite:3]{index=3}

3. How Does the Zamak Die Casting Process Work?

A reliable Zamak die casting project starts long before molten metal enters the mold. Product geometry, alloy selection, tooling design, injection parameters, cooling, trimming, inspection, and finishing must work together.

1. Part design review: Engineers examine wall thickness, draft, ribs, bosses, holes, parting lines, ejector locations, and functional requirements.
2. Die design: The mold is engineered with cavities, runners, gates, overflows, vents, cooling channels, slides, and ejector mechanisms as required.
3. Alloy preparation: Approved Zamak ingots are melted under controlled conditions.
4. Injection: The molten alloy is injected into the steel die at controlled speed and pressure.
5. Solidification: Cooling allows the metal to solidify while the die controls the final geometry.
6. Die opening and ejection: The casting is removed from the cavity using the designed ejection system.
7. Trimming: Gates, runners, flash, and other excess material are removed.
8. Secondary processing: Depending on the product, operations may include machining, drilling, tapping, polishing, deburring, or assembly.
9. Surface treatment: Plating, painting, powder coating, chromate treatment, or other finishing methods may be applied.
10. Inspection and packing: Dimensions, appearance, mechanical requirements, and other agreed specifications are verified before shipment.

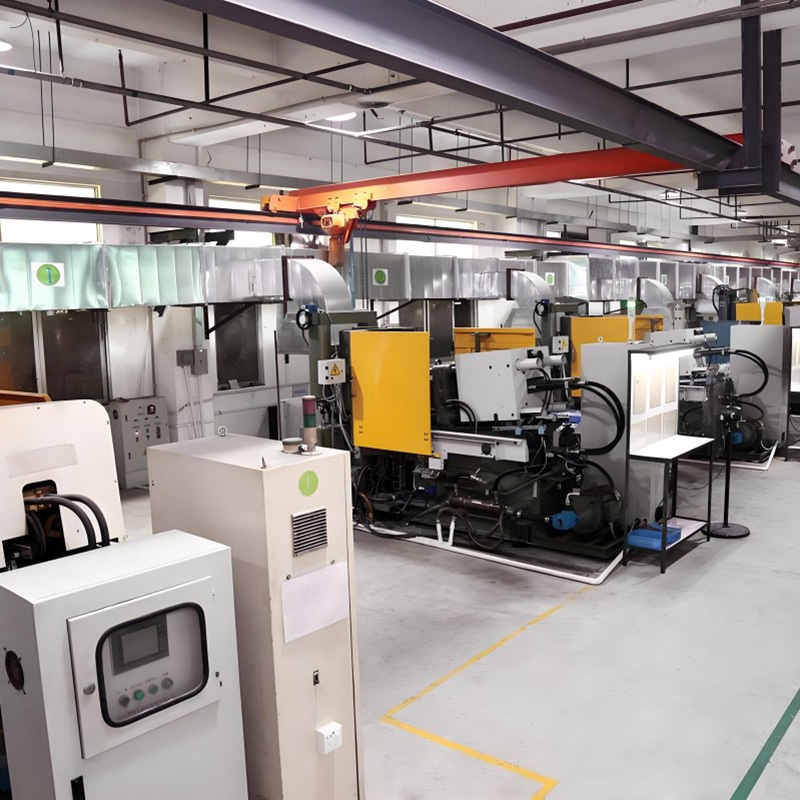

Conventional Zamak alloys are commonly associated with hot-chamber die casting because their melting characteristics permit rapid production cycles. This makes the process particularly attractive for high-volume components where repeatability and cycle efficiency are important. :contentReference[oaicite:4]{index=4}

4. What Makes Zamak Die Casting Suitable for Precision Parts?

Buyers often choose Zamak because several manufacturing requirements can be addressed within a single production method. The material's casting behavior allows manufacturers to produce complex shapes with relatively fine details, while the die provides repeatable geometry from one production cycle to another.

• Complex geometry: Zamak can reproduce detailed shapes, ribs, bosses, grooves, and other molded features.
• Thin-wall capability: Proper alloy and process design can support relatively thin sections where the geometry permits.
• Dimensional consistency: A well-designed steel die can repeatedly produce the same basic geometry across large production runs.
• Surface finishing: Zamak is well suited to several decorative and protective finishing methods.
• Machinability: Selected secondary operations can be performed after casting when additional precision is required.
• Part consolidation: Multiple fabricated components may sometimes be integrated into a single casting.
• High production efficiency: Hot-chamber processing can support rapid repetitive production for suitable parts.

These advantages do not mean every component should automatically be made from Zamak. Load requirements, operating temperature, corrosion environment, wall geometry, production volume, tooling investment, and finishing requirements should all be considered during material selection.

5. What Should Engineers Consider When Designing Zamak Parts?

Many casting problems originate in product geometry rather than in the casting machine itself. A design that looks acceptable in a CAD model may create filling, cooling, ejection, machining, or finishing difficulties during actual production.

Important design considerations include:

• Wall thickness: Avoid unnecessary variations that can create uneven solidification and dimensional problems.
• Draft angles: Adequate draft helps the casting release from the die without damaging surfaces.
• Ribs: Structural ribs can increase stiffness without simply making the entire part thicker.
• Fillets: Rounded transitions can reduce abrupt geometry changes and improve metal flow.
• Parting lines: The location should be considered together with appearance, ejection, trimming, and dimensional requirements.
• Threads and holes: Determine whether features should be cast directly or created through secondary machining.
• Undercuts: Slides or alternative tooling strategies may be necessary when geometry cannot be released directly.
• Datum strategy: Functional dimensions should be linked to stable inspection references.

The objective is not simply to make a part that can be cast. The objective is to create a part that can be cast consistently, inspected efficiently, finished properly, assembled reliably, and manufactured economically throughout the expected production life.

6. Which Surface Finishing Options Are Available?

Zamak castings can be finished for appearance, corrosion protection, wear resistance, branding, or specific functional requirements. The correct treatment depends on the alloy, surface condition, application environment, appearance target, and required durability.

Good finishing results begin with good casting quality. Surface defects, excessive porosity, flash, cold shuts, or inconsistent substrate preparation can become more visible after plating or painting. For this reason, casting and finishing should be treated as one connected manufacturing chain rather than isolated operations.

7. Where Are Zamak Die Castings Used?

Zamak's combination of castability, surface quality, strength, dimensional performance, and finishing flexibility allows it to serve many industries.

• Automotive: brackets, housings, handles, adjustment components, decorative hardware, and selected functional parts.
• Electrical and electronics: housings, connectors, shielding components, mounting parts, and hardware.
• Consumer products: handles, locks, knobs, fittings, decorative components, and appliance hardware.
• Furniture and architectural hardware: brackets, handles, connectors, fittings, and decorative components.
• Industrial equipment: housings, mechanical components, adjustment mechanisms, and structural hardware.
• Plumbing and hardware: selected fittings, handles, connectors, and hardware components.
• Security products: housings, locks, brackets, and other precision hardware.

The actual suitability of Zamak depends on the operating conditions of the specific component. Parts exposed to elevated temperatures, severe chemical environments, or unusually high mechanical loads require a detailed engineering assessment rather than a material choice based solely on manufacturing convenience.

8. How Can Manufacturers Control Zamak Casting Quality?

Consistent quality requires control throughout the entire manufacturing chain. Inspecting finished parts alone cannot compensate for unstable tooling, inconsistent alloy chemistry, or poorly controlled casting parameters.

Depending on the component, inspection may include dimensional measurement, visual inspection, gauges, coordinate measurement, material verification, coating inspection, functional testing, or other agreed methods.

9. What Common Zamak Die Casting Problems Should Buyers Avoid?

A successful production program is not simply about achieving a good first sample. Buyers should also consider whether the manufacturer can maintain stable quality after hundreds, thousands, or millions of cycles.

Typical issues include:

• Porosity: Internal voids can affect mechanical performance and machining results.
• Flash: Excess metal along the parting line can increase trimming requirements and affect dimensions.
• Cold shuts: Incomplete fusion of metal fronts can create visible or structural discontinuities.
• Flow marks: Uneven filling or thermal conditions can create visible surface patterns.
• Dimensional variation: Tool wear, process instability, cooling differences, or measurement inconsistencies can affect part dimensions.
• Surface defects: Poor preparation or casting defects may become especially obvious after decorative finishing.
• Die wear: Long production runs require tooling inspection and maintenance to preserve repeatability.

The best approach is preventive. A supplier should be able to discuss potential failure modes before mass production and explain how tooling, process parameters, inspection, and corrective actions are managed.

10. What Should Buyers Look for in a Zamak Die Casting Manufacturer?

Choosing a Zamak die casting supplier involves more than comparing a unit price. The supplier's engineering capability, tooling experience, process control, finishing resources, inspection system, communication, and production capacity can directly affect the total project cost.

A practical supplier evaluation checklist includes:

1. Can the manufacturer review your 2D drawings and 3D CAD files?
2. Can the engineering team identify casting risks before tooling begins?
3. Which Zamak grades can the supplier process consistently?
4. Can the supplier provide material documentation when required?
5. How are die design, die manufacturing, and die maintenance managed?
6. What dimensional inspection equipment is available?
7. Can machining and finishing be handled under controlled conditions?
8. How are first samples approved before mass production?
9. How are nonconforming parts identified and corrected?
10. Can the supplier support production scaling without compromising consistency?

Ningbo United Machine Co., Ltd. can be presented as a manufacturing partner for customers looking for custom Zamak die casting and precision metal component production. For a project-specific evaluation, the supplier should review the component drawing, alloy requirements, annual demand, finishing requirements, and inspection criteria before confirming the manufacturing approach.

11. Frequently Asked Questions

12. Final Considerations

Zamak die casting combines a zinc-based engineering material with a high-speed precision forming process. Its value comes from the interaction between alloy selection, tooling engineering, controlled injection, cooling, finishing, and inspection—not from the material alone.

For buyers, the most important step is to define the actual requirements of the component before production begins. A suitable Zamak grade, properly engineered die, stable process, appropriate finishing method, and clearly defined inspection plan can help create components that meet both functional and appearance requirements.

Whether the requirement involves a small precision hardware component, a decorative housing, an industrial fitting, an automotive part, or a customized OEM component, early communication between the product designer and die casting manufacturer can reduce avoidable tooling changes and production problems.
